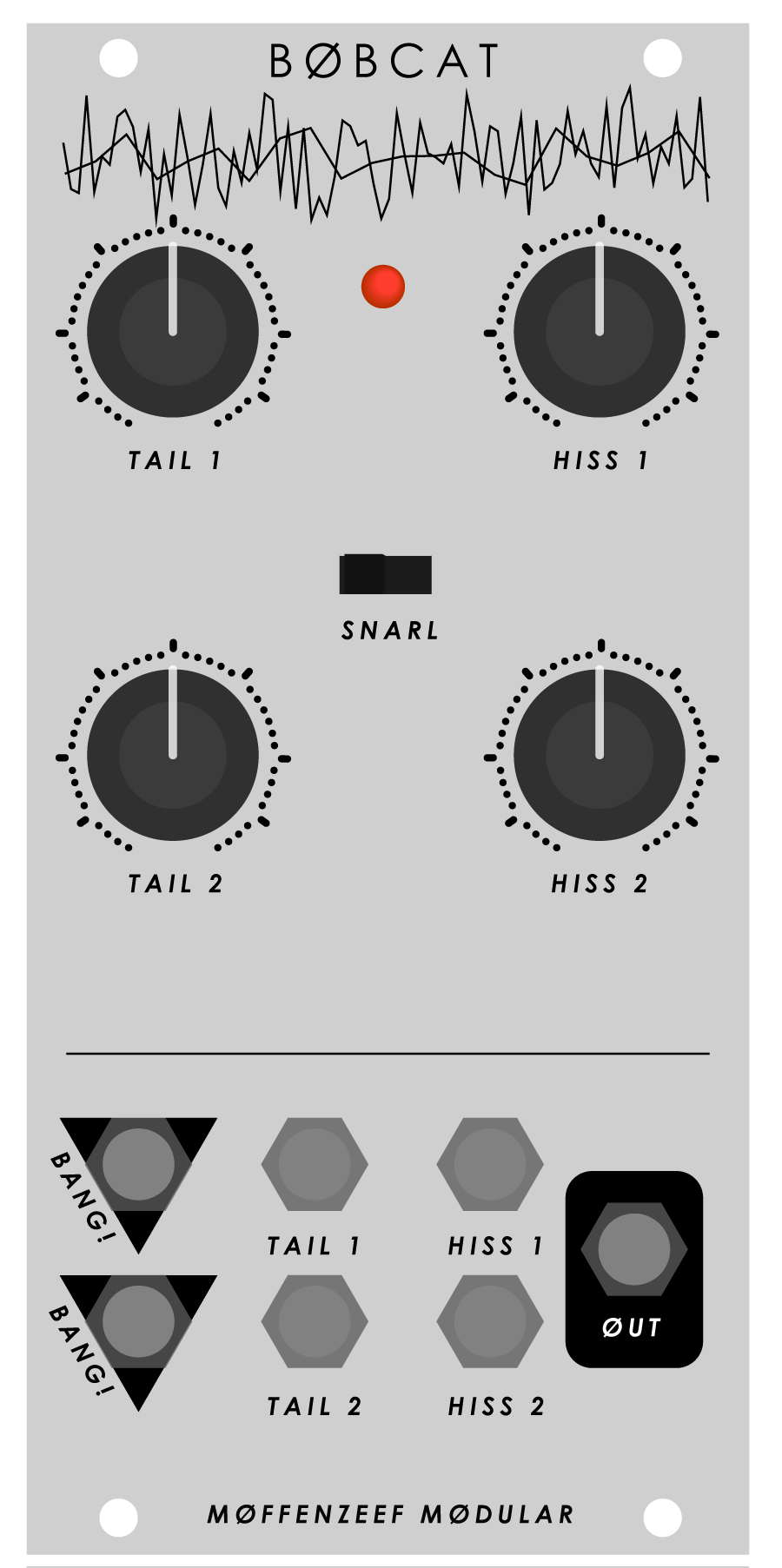

BØBCAT

G.M.Ø ALTERNATE FIRMWARE

G.M.Ø ALTERNATE FIRMWARE




                          The Bøbcat is an alternate firmware of the G.M.Ø that can be døwnløaded via øur github and upløaded øntø the mødule. The Bøbcat is an ex-løver øf the GMØ’s and a cløse cøusin tø the Møngrel. Øutfitted with twø channels øf decaying digital nøise, this mødule is a nice, simple additiøn tø any drum synth setup. Simply feed it twø trigger søurces and bask in the gnarly hissing gløry. If yøu feel sø inclined–and need the extra gnar–flip the “snarl” switch tø gø frøm alley cat screeches tø guttural møans.



QUICKSTART GUIDE

ØPEN SØURCE:

USERS HAVE THE CAPABILITY TØ FLASH FIRMWARE UPDATES USING THE ARDUINØ IDE. ALTERNATE FIRMWARE AND ALTERNATE SØUND BANKS AVAILABLE VIA GITHUB. MØRE INFØ HERE

ALTERNATE PANELS:

Bøbcat panels are now available from Magpie Modular

SPECS:

WIDTH: 12HP
MØUNTING DEPTH: 30MM
CURRENT DRAW: 50MA +12V
                             10MA -12V
                             0MA 5V
INPUT IMPEDANCE: 100KΩ
OUTPUT IMPEDANCE: 1KΩ

FEATURES:

  • TWØ CHANNEL DRUM VØICE WITH IDENTICAL SECTIØNS

  • “TAIL”: CØNTRØLS DECAY TIME (2MS - 230MS)

  • “HISS”: CØNTRØLS PITCH (0.01% - 300%)

  •  “SNARL”: SWITCHES TØGGLES BETWEEN WHITE AND BRØWN NØISE

  • “BANG!” INPUT: TRIGGERS EXPØNENTIAL ATTACK/DECAY ENVELØPE

  • BIPØLAR CV CØNTRØL ØVER ALL PARAMETERS

  • REVERSE PØLARITY PRØTECTIØN, PØWER FILTERING, AND KEYED HEADERS

  • PRØPER +5/-5 CV INPUT BUFFERING AND CURRENT LIMITING

  • 12BIT AUDIØ ØUTPUT

  • SKIFF FRIENDLY - LØW PØWER, SHALLØW MØUNTING DEPTH
